OUGD504- Laser Cutting Primary Research

By following the instructions above I now feel confident in using the laser cutter. It will be an interesting option that I could use in my designs.

There were a few materials that are not possible to cut:

- Reflective surfices

- Brown Lino

- Metal

The image above is the four options that the laser cutter provides:

- Cut through - cuts design out

- Engrave - has depth to the cut

- Kiss cut - cuts the surface

- Raster - fills in the shape by cutting lines close together

Each colour on the software relates to the cutting options:

Red - Cut through

Green - Engrave

Violet - Kiss cut

Blue - Raster

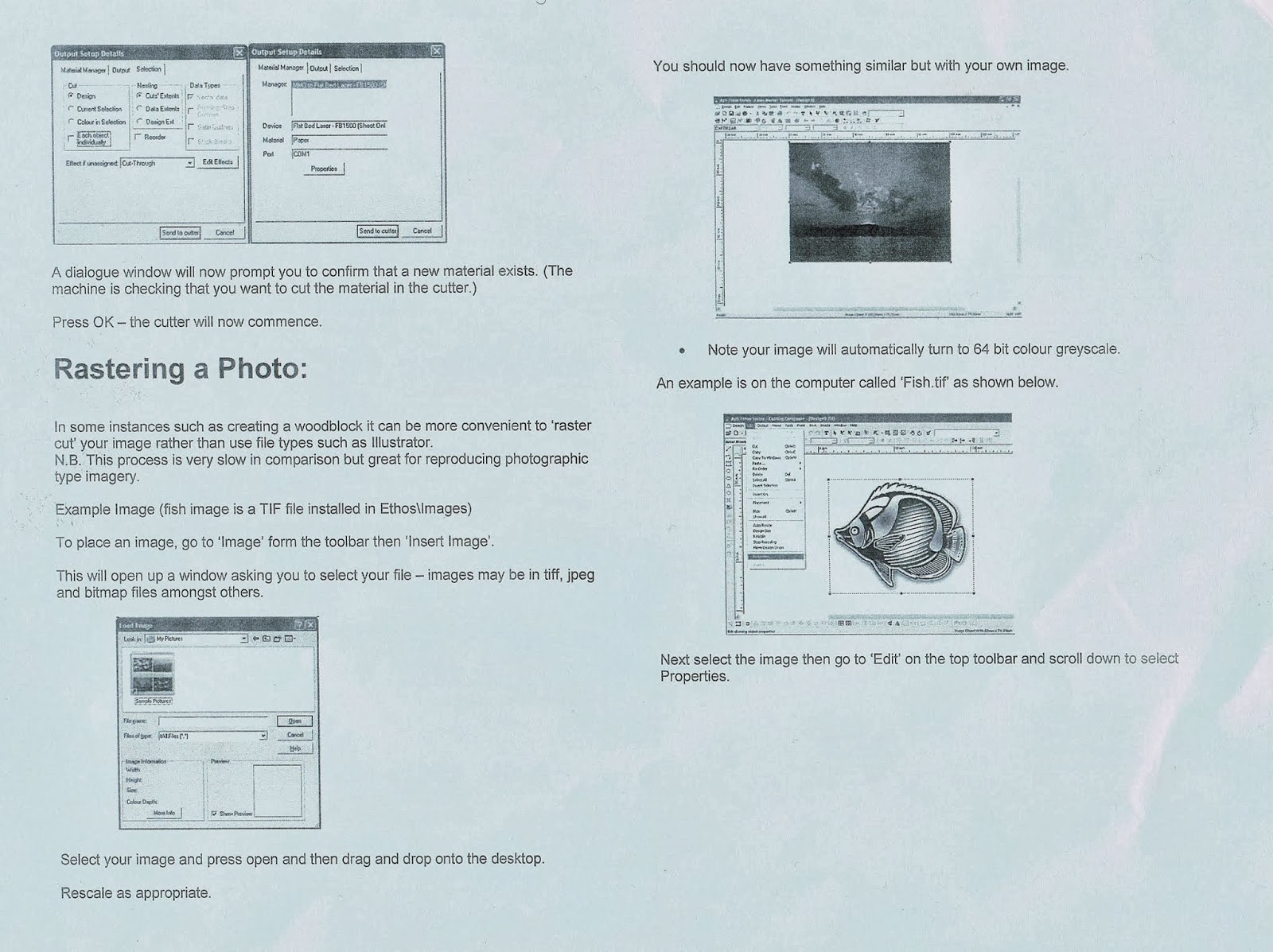

Below is an raster image cut into MDF. I didn't know you could do this with laser cutting so I have learned a new technique which could be interesting to experiment with in the future.

Here are some examples of materials that can be laser cut:

Grey lino

Glass

Card

Acrylic

Wood
